Support humanoid detect, more accurate alarms and phone information push.
Support WIFI, support AP mode.
Support up to 128G TF card storage.
2.7-13.5mm 5X optical zoom auto focus lens.
Support two way audio(built-in MIC and speakers).
Pan tilt rotation, horizontal:355°&vertical:120°
Waterproof level IP66.
6pcs array infrared LEDs, night vision distance 50m.
Support P2P, view & anywhere & any time.
Elegant outline and easy installation.
Provide android & ios APP and professional CMS PC client software.
Model | SD09W | |
Video | Sensor | 5.0 megapixel 1/2.8″ SONY335 low lux CMOS |
Video resolution | Main stream: 2560×1920@15fps, 2560×1440@15fps Sub stream: 800×600/800×448@25fps, 640×480/640×352@25fps |
|
Video compression | H.265 | |
Lens | 2.7-13.5mm 5X optical zoom auto focus lens | |
View angle | 96°~26.2° | |
Night vision | 6pcs array infrared LEDs, night vision distance 50m | |
Audio | Audio compression | G.726/G.711 |
Audio code rate | 8Kbps, 16bit | |
Audio input/output | Built-in MIC and speakers, support two way audio | |
Alarm | Motion detecting alarm | Can sets 4 independent detect region (1-100 sensitivity can be set) |
Humanoid detect | Support, can jointly trigger alarm with motion detect, alarm is more accurate | |
Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm pictures and videos to Mi cro recording card, Alarm phone message push, Alarm trigger sound alarm |
|
Alarm recording | Support Mi cro recording card and PC client linkage alarm recording | |
Network | Wireless | IEEE 802.11 b/g/n |
Ethernet | RJ45 Ethernet | |
Onvif protocol | Support ONVIF 2.4(backward compatible) | |
Storage | Mi cro recording card | Support up to 128G Mi cro recording card |
Recording mode | Alarm, timing | |
Video playback | Support APP, IE browser, remote client play and download the video | |
PTZ | Rotation angle | Hori: 0°-355°, Vertical: 0°-120° |
Horizontal speed | 10°-30°/S | |
Vertical speed | 8°-25°/S | |
Preset | 8 preset points, supports cru ise function | |
General specification | Power | DC12V 2A |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%-90%, non-condensing |
|
Shell material | All metal shell | |
Waterproof level | IP66 | |
Product size | 160mm×100mm×175mm(L×W×H) | |
Product weight | 0.9kg | |
Package size | 225mmx205mmx120mm(L×W×H) | |
Package weight | 1.2kg | |
Reset button | Support |

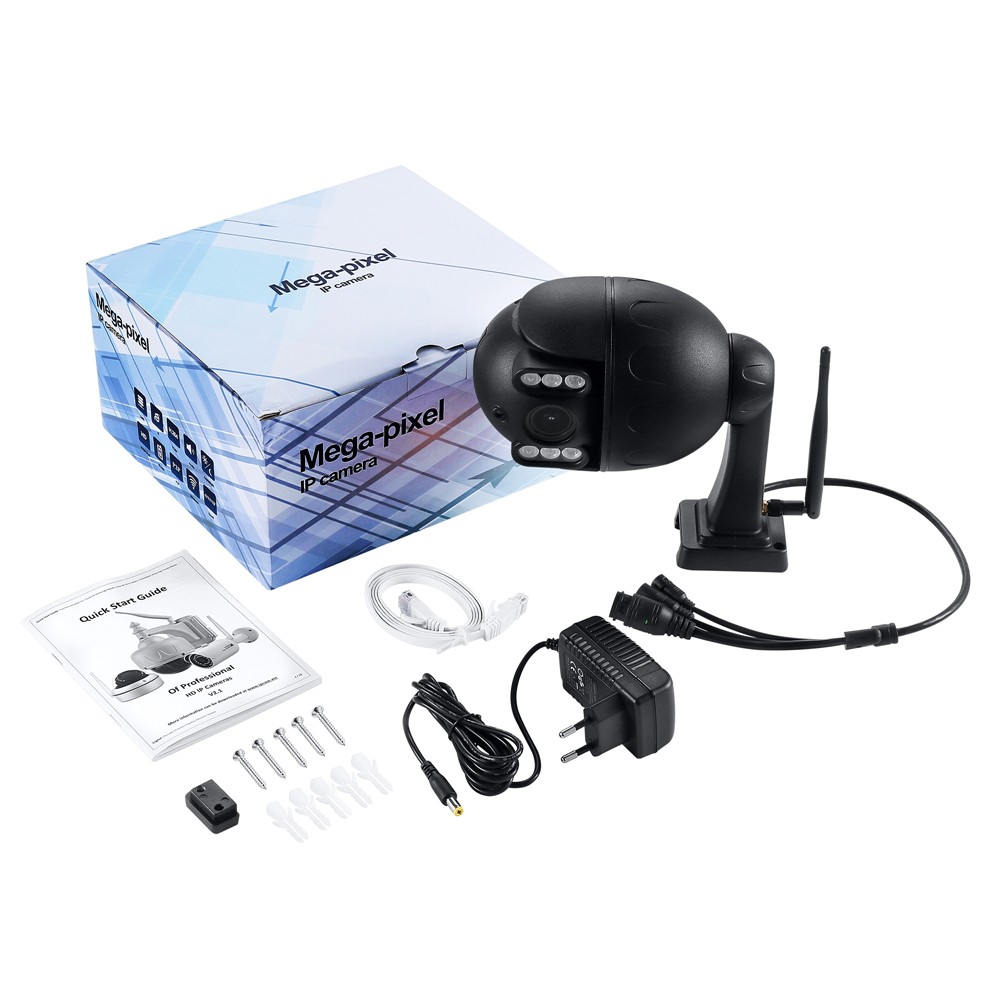

1 x EU power Supply (Come with adapter according to your country)
1 x Network Cable
1 x User Manual
