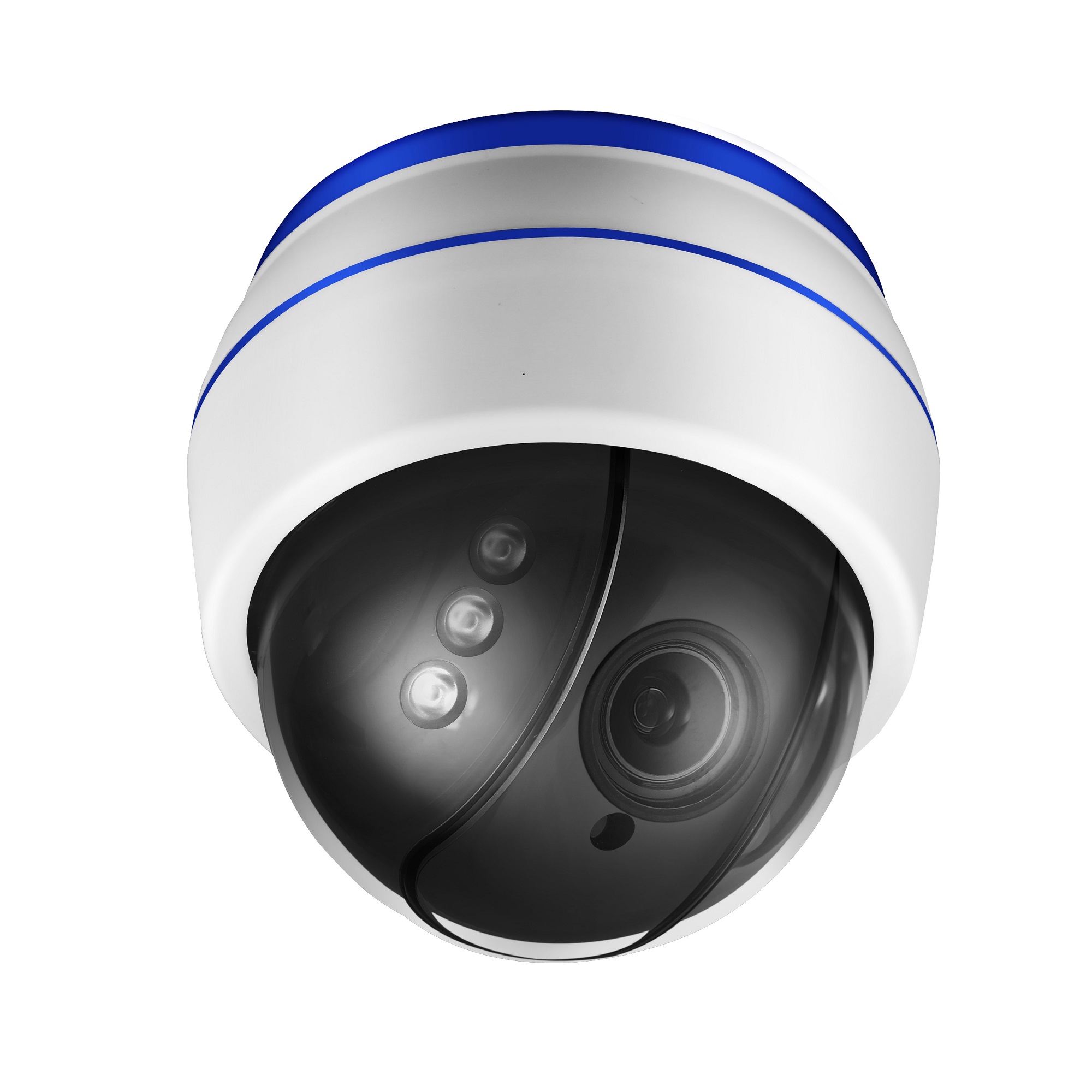

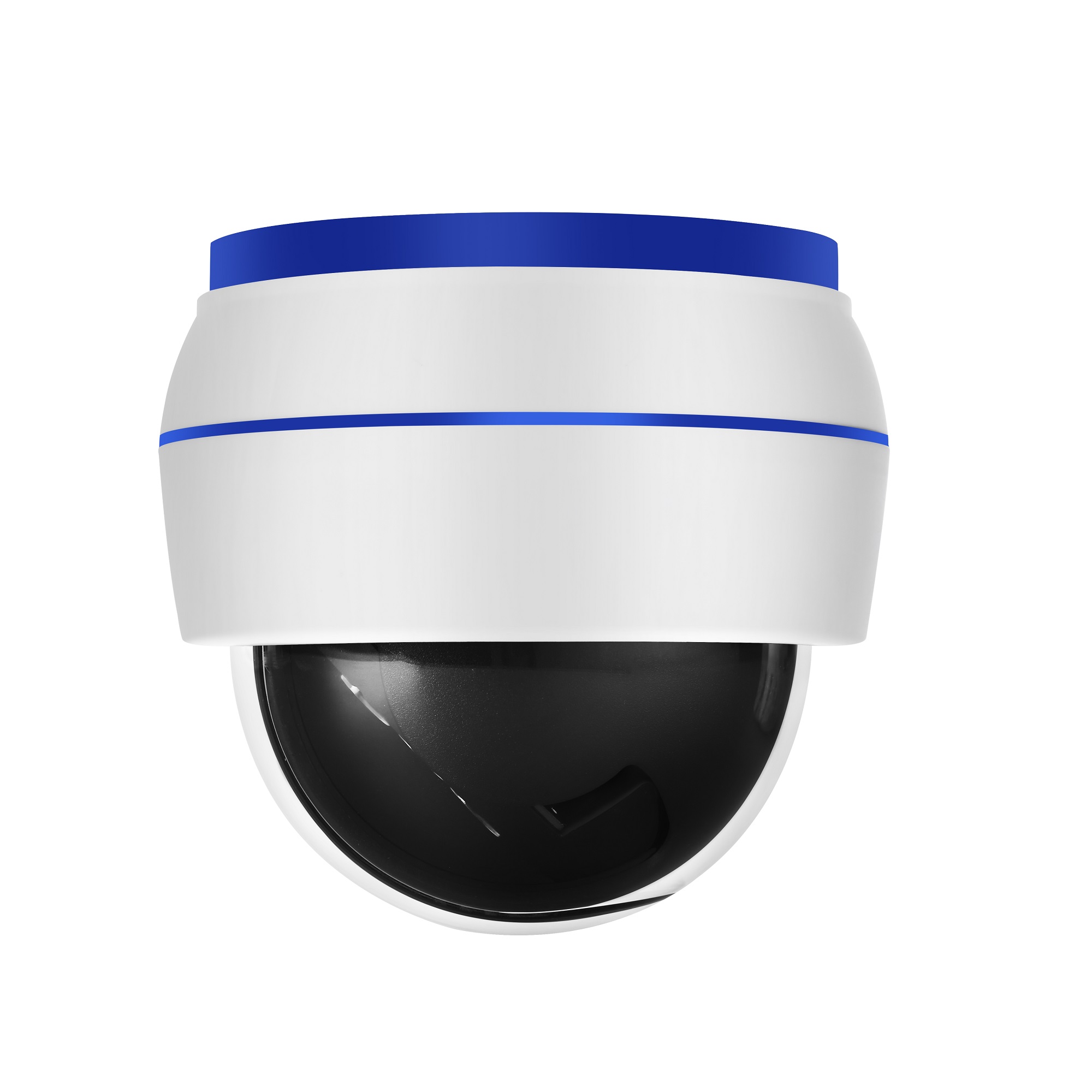

Model | D73W | |
Video | Sensor | 1.3 megapixel 1/3 ” SC1135 low lux CMOS |
Video resolution | Main stream: 1280×960@25fps, 1280×720@25fps Sub stream: 640×480/640×352@25fps, 320×240/320×176@25fps |
|
Video compression | H.264 | |
Lens | 2.7-13.5mm 5X optical zoom auto focus lens | |
View angle | 96°~26.2° | |
Night vision | 6pcs array infrared LEDs, night vision distance 40m | |
Audio | Audio compression | G.726/G.711 |
Audio code rate | Rate adaptive | |
Audio input | Built-in MIC, support voice monitor | |
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push |
|
Alarm recording | Support Micro SD card and PC client linkage alarm recording | |
Network | Wireless | IEEE 802.11 b/g/n |
Ethernet | RJ45 Ethernet | |
Onvif protocol | Support ONVIF 2.4(backward compatible) | |
Storage | Micro SD card | Support up to 128G micro SD card |
Recording mode | Alarm record, timing record, | |
Video playback | Support APP, IE browser, remote client play and download the video | |
PTZ | Rotation angle | Hori zon: 0~300°, Vertical: 0 ~ 60° |
Horiz ontal speed | 10°~30°/S | |
Vertical speed | 8°~25°/S | |
Preset | Support 8 preset points | |
General specification | Power | DC12V 1A |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10% ~ 90%, non-condensing |
1 x Bag of Srews
1 x Antenna
1 x English User Manual
1 x EU Power Supply (Come with an adapter according to your country~)
Appearance updated from 2018-04-18th, more elegant with the same price!~ hope you like it as always~
