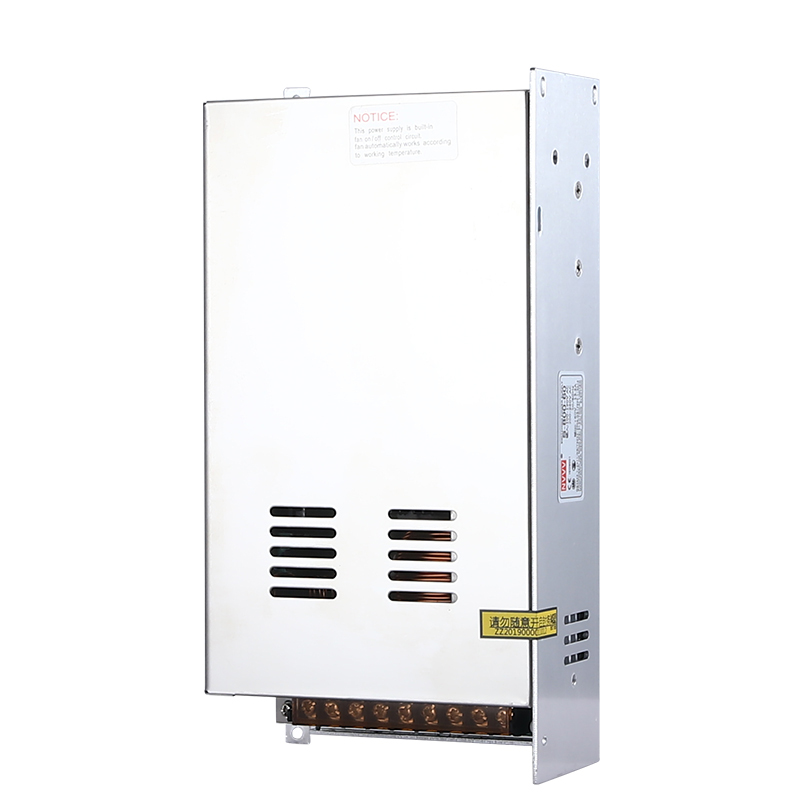

RIDEN® RD6012 RD6012W S-800-65V 11.4A Switching Power Supply AC/DC Power Transformer Has Sufficient Power 90-132VAC/180-264VAC to DC65V

RIDEN® RD6012 RD6012W S-800-65V 11.4A Switching Power Supply AC/DC Power Transformer Has Sufficient Power 90-132VAC/180-264VAC to DC65V

Name: RIDEN® RD6012 RD6012W S-800-65V 11.4A Switching Power Supply AC/DC Power Transformer Has Sufficient Power 90-132VAC/180-264VAC to DC65V -
SKU: 1689167
Price: 90.39 USD
Availability: InStock

Original price was: $112.99.Current price is: $90.39.

USD

AUD

BND

AED

ANG

ARS

BRL

NZD

TRY

RUB

PLN

EUR

VND

LTC

GBP

IDR

MYR

SGD

THB

TZS

RON

PHP

NPR

INR

KRW

MXN

JPY

HKD

CZK

TWD

ETH

4 in stock

SKU: 1689167 Category: Power Supply Module Tags: 114, 180264, 6012, 65, 80065, 90132, ACDC, DC, Has, Power, RD, RIDEN, Sufficient, Supply, Switching, To, Transformer, VAC

Note: It can used with RD6012/RD6012-W (Product ID: 1687705), S12A case (Product ID: 1687955)

Regarding the change of the quota value: We have newly customized the 65V version and added a smart temperature control fan, which has better results than before. The power supply is adjustable ±5%. Some customers may still receive the old version, which will not be affected in use. Thank you for your understanding. (The quota value of the new version is 65V, which can be adjusted to 68V, and theoretically it can reach 72V.)

Feature:

Name	Switching Power Supply	Input voltage	90-132VAC/180-264VAC
Model	S-800-65V (Custom Edition)	Adjustable	±10%
Voltage	65V	Power	800W
Size	24112565mm

Project	Technical Parameters
DC Output Voltage	12V	24V	27V	36V	48V	65V (this item)
Rated Output Current	60A	33.3A	29.6A	22.2A	16.6A	11.4A
Rated Output Power	720W	800W	800W	800W	800W	800W
Ripple and Noise	＜150mV	＜240mV	＜240mV	＜240mV	＜240mV	＜240mV
Output Voltage Accuracy	±1%
Output Voltage Adjustable Range	±10%
load Regulation	＜±1.2%	＜±1%	＜±1%	＜±1%	＜±0.5%	＜±0.5%
Line Regulation	＜±1%
Output Overload Protection	105%-135% Type: constant current output +VO Drop to undervoltage point cut off the output Reset: Reconnect the input
Output Over-Voltage Protection	115%-145%
Output undervoltage protection	40%-45%V OUT
Efficiency (typical)	＞81%	＞83%	＞83%	＞83%	＞84%	＞85%
Over temperature protection	RTH3: ≥70℃ the fan runs fast ≥90℃ shut down the output (18V-48V)
Input voltage range	90-132VAC/180-264VAC, 47Hz~63Hz; 254VDC~370VDC
Input inrush current	110VAC 25A, 220VAC: 50A
Maximum input working current	＜13A 115VAC,＜7.5A 230VAC
Set-Up/Rise/Hold-Up Time	200ms, 50ms, 20ms: 230VAC
Dielectric Hipot	Input-output: 1.5KV AC, input-shell: 1.5kV AC Output-shell: 0.5KV AC for 1 min
Leakage Current	Input-output at 1.5KV AC; Leakage Current＜6mA
Leakage Current	Input-output at 220V AC; Leakage Current＜1.5mA
Isolation Resistance	Input-output, input-shell, output-shell: 500VDC/100MΩ
Working temperature and humidity	-10℃~+50℃, 20%~90RH
Storage temperature and humidity	-20℃~+85℃, 10%~95RH
Size	24112565mm
Net weight / gross weight	1268/1358g

Package includes:

1 x Power Supply

Weight	1.33 kg
